OWL F-18 Super Hornet 64mm EDF
( Semi Scale Model )
~ LW-PLA Digital Balsa & Foam +
PLA Series ~

This OWL F-18 Super Hornet model uses a single 64mm EDF (please visit another OWL F-18 Super Hornet that uses also a single 70mm EDF). This model is a special edition where two sets of STL files and also gcode files are provided intentionally to print with LW-PLA or PLA filaments since there internals are designed differently. PLA design model needs more inner structure compared to LW-PLA design since there is no infill used to support the inner structure. It is expected to have 200gr more weight if printed with PLA compared to LW-PLA.

The 64mm EDF version uses 4s LiPo battery ranging from 1500mAh to 2200mAh. It is possible to use a single 50mm EDF when printed with LW-PLA but not yet tested (the 50mm EDF bracket is also provided and feel free to test). If you would like to test it, suggest to use 1500mAh 4s since it will reduce the weight to 100gr compared to 2200mAh battery.

Please note, since we push the model to use 64mm EDF size for double exhaust nozzles, it is required to remove the intake lip before installing into the fuselage so that the EDF will fit into.  This OWL F-18 Super Hornet model can not use 64mm EDF size with fixed intake lip *** will not entertain any request for EDF with fixed intake lip ***. Please go to EDF section below to see what are EDF brand options to use.

We continue releasing the model with a “digital balsa and foam” approach. So far, we are very happy to get feedback from some of our customers when slicing the model designed with that approach. The printed parts are much stronger and still keep the weight about the same as the digital balsa approach. Whenever we feel the model will still fly excellent when printed with PLA, will include the PLA version and this model is one of them (more if possible in the future models). New PLA slicing profiles are introduced specifically for EDF PLA model. It adds bottom and top solid layers so that the model is more impact resistant during belly landing. During our test, the top and bottom solid layers support significant vertical impacts. To protect from scratches during landing, you may want to use fiber tape (you can find it in details below in this page).

If you are not familiar with hand launching an EDF jet, we would suggest you use our OWLplane Catapult Launcher (it is human free error from throwing the model). During maiden, also suggest using that launcher to get you familiar first with the model. When you have trimmed aileron and elevator control surfaces already, you will have no worry and no need anymore setting the control surfaces at the same time especially when trying to hand launch the model.

Directory for PLA : OWL F-18 Super Hornet 64mm – STL, 3MF and G-code ver 1.0\PLA Set

Directory for LW-PLA : OWL F-18 Super Hornet 64mm – STL, 3MF and G-code ver 1.0\LW-PLA Set

It is not with landing gear model (it is a hand launch or catapult launch type of model).

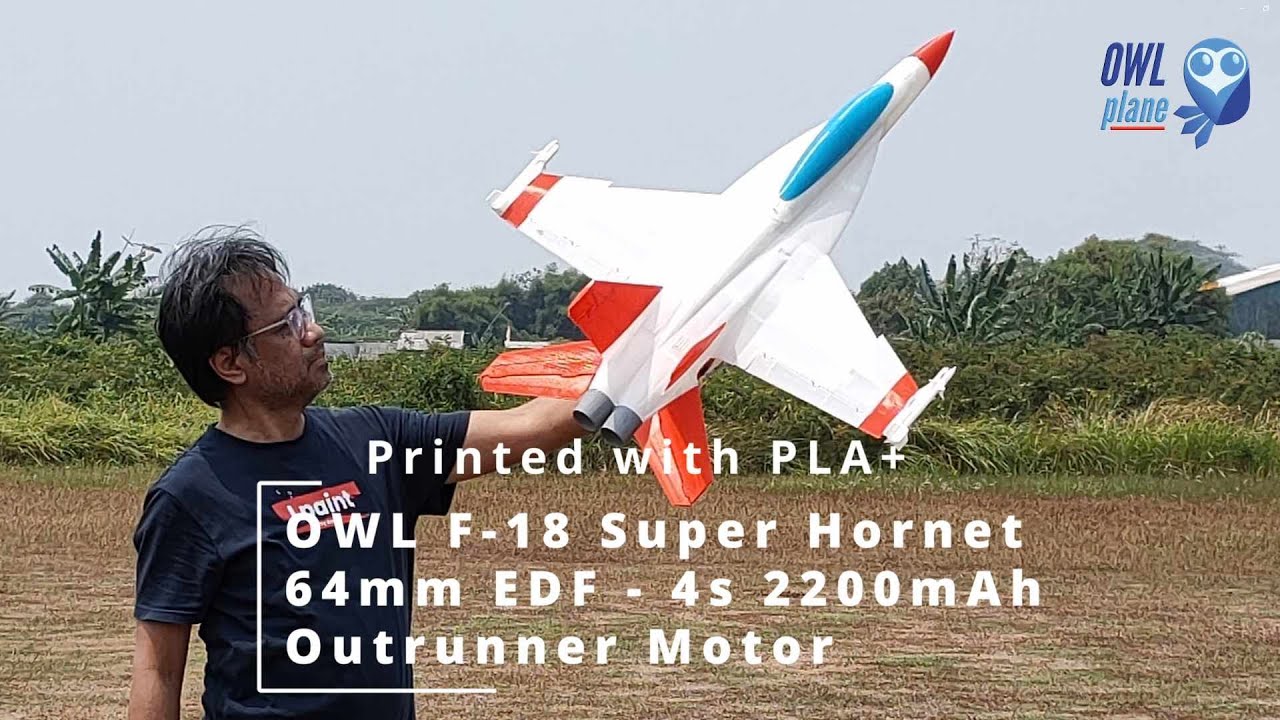

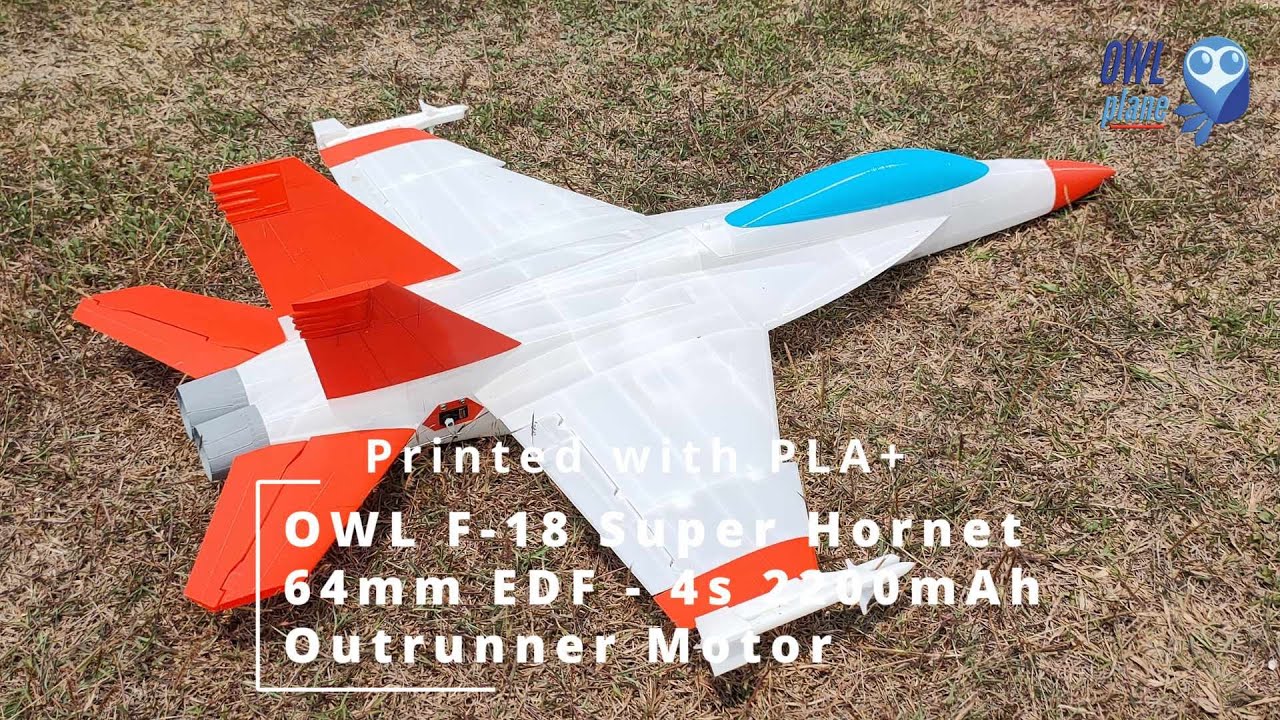

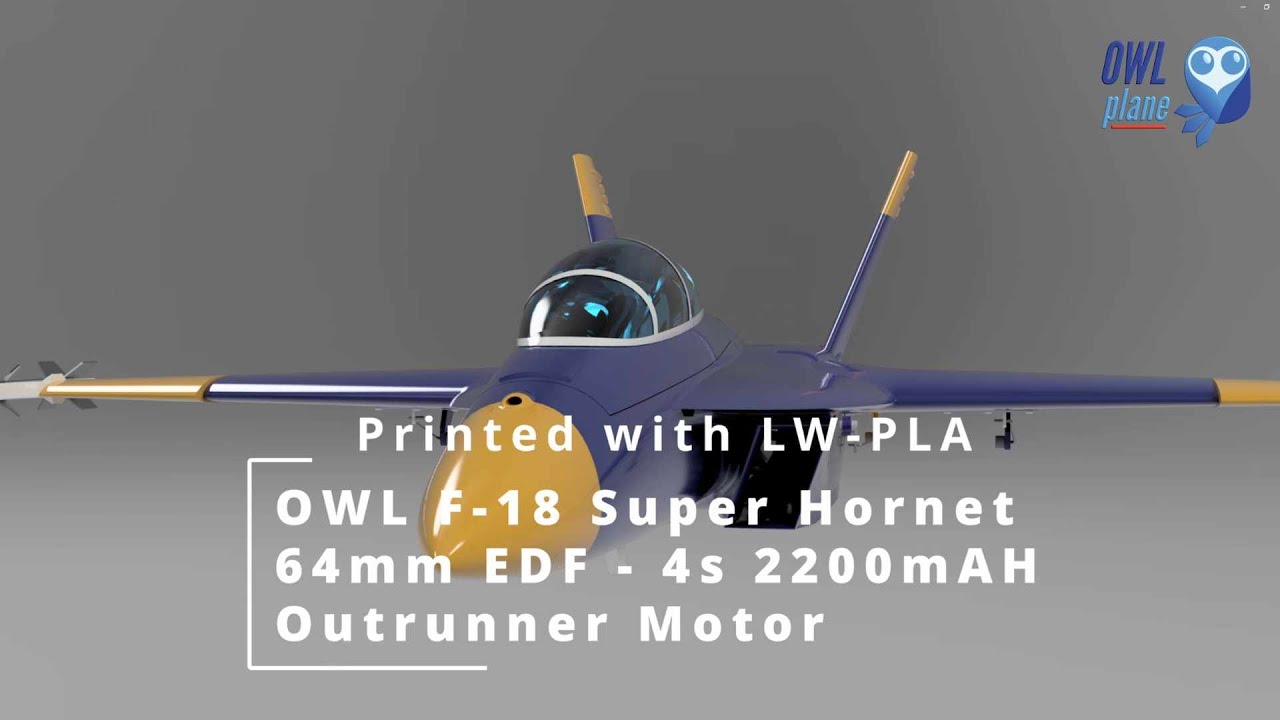

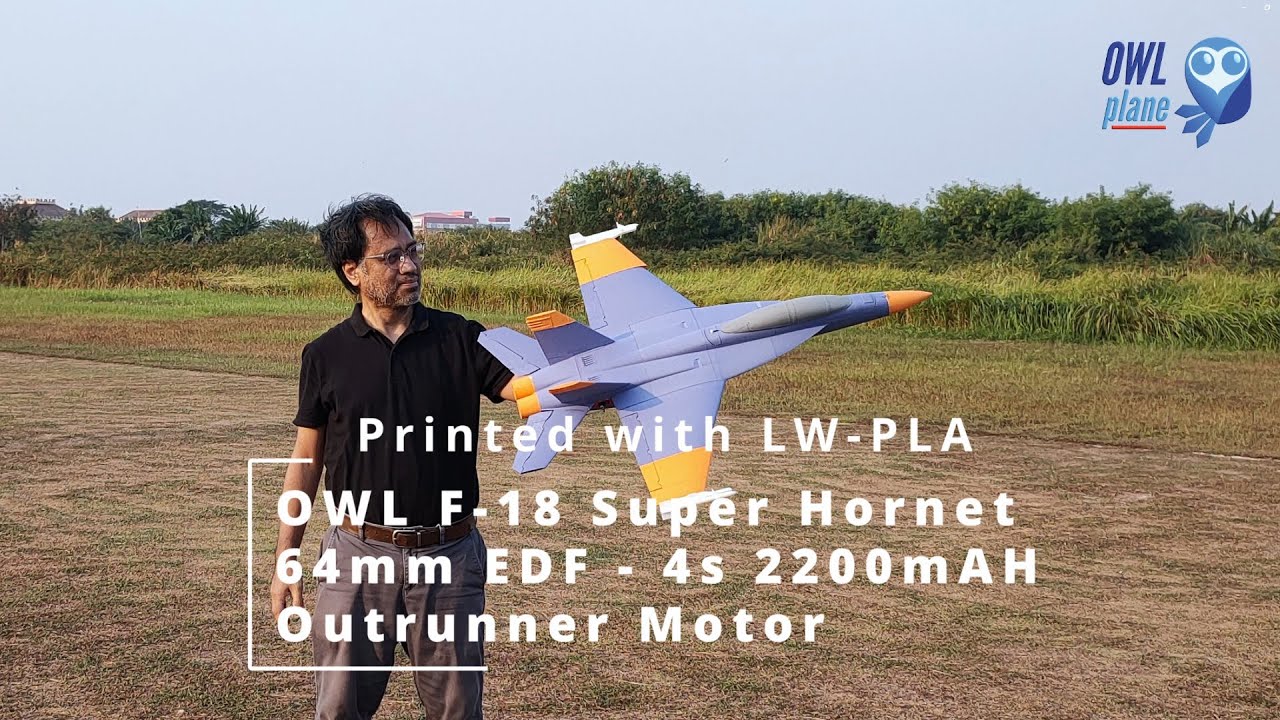

Videos and Pictures

LW-PLA Digital Balsa and Foam Series

This is a special edition model where supporting for both LW-PLA and PLA filaments. Infill will be used when using LW-PLA but 0% infill for PLA. Both have their own characteristics and depending on your preferences, you can chose either one to print. Two sets of gcode and STL files are provided since they are designed and sliced according to the type of filaments. To make things simpler and easy to slice, the 3MF PrusaSlicer files are provided. In this edition, other PLA slicer profiles are not provided but if you are familiar with other slicers feel free to slice the PLA STL files with your preferred slicers.

Below is brief explanation about “LW-PLA Digital Balsa and Foam” design approach.

Printing Profiles with Gyroid Infill :

As you can see from the pictures below, they illustrate a 3D printed part when using gyroid infill and ribs. You can pick infill percentage to you preferences where the higher you set it will be stronger. To get optimal result, we also still use ribs so that we will achieve parts using optimal gyroid infill percentage. With having gyroid infill, we have tried to use top and bottom layers. The good news is that the AUW is still acceptable for the jet and allow it to use like lego style blocks to assemble.

We run some research and experiment with some number of setting values for infill percentage. Final values will be used in our OWLplane slicer profiles. Feel free to increase or decrease the values including playing with other settings if you feel better than ours (we are happy listening / getting your input/feedback, so keep us posted about your build in our facebook group).

*) Below is from F16 part for illustration.

Like Playing Lego :

As explained above, click the right side youtube video showing how to assembly the fuselage like playing “lego” blocks.

Expected Some Stringing but Easy to Clean :

Since active foaming filaments such as LW-PLA is not affected  by retraction, some stringings are expected. The good news is that they are easy to clean compared to printing with standard PLA/PLA+.

Note : sample parts from F16 model.

Sandpaper Cleaning the Excessive Materials Surrounding Plug-In Blocks :

Sanding parts would make assembling much easier and clean. Excessive materials can be found on the top surfaces. For example, the circle in the picture need to sand so that there is no need to push the part later to fit into the next part.

Note : sample parts from F16 model.

Sand The Surfaces to Get Smooth Ones :

Comparing surfaces before and after sending it. LW-PLA material let you smoothing surfaces where it would not be applicable with standard PLA or PLA+.

Specification and Some Details

Spar Requirements :

  • 1 x 6mm OD and with 380mm long fiber carbon tube as front fuselage and wing spar.
  • 1 x 6mm OD and with 630mm long fiber carbon tube as back fuselage and wing spar.
  • 2 x 5mm OD and with 180mm long for horizontal stabilizer spar.

Locking Belt for Attaching Wings to Fuselage :

Aileron/Wing Control Surfaces Rods:

Elevator/Horizontal Stabilizer Control Surfaces Rods:

Canopy Assembly Support Rod and Pins :

See below figures to assembly the Canopy by using 1.5-2mm support rod and provided 3D printed pins.

Electronic Positions :

Feel free to locate the electronics for getting the correct CoG.

50mm/64mm EDF Bracket and Installation :

Two type of EDF brackets are provided (please note : suggest to use 64mm EDF for this model), they are for 50mm type of EDF and 64mm type of EDF. Please note for 64mm EDF that only removable intake lip EDF can use the bracket. STEP file is provided if you want to modify for brands not in the list. It means that fixed intake lip would not be supported only for 64mm EDF. Make sure your EDF are supported by the requirement above since we will not entertain if your EDF can not be installed. Please check if your current EDF can use the provided brackets by printing them. It is free to download by clicking the button below.

In summary *** requirements to use the brackets *** :

1. 50mm EDF – need to keep/to use intake lip. Please hot glue the EDF into the bracket. Since it uses hot glue, it should be easy to remove the EDF later from the bracket using hot water to loose the glue if you would like to reuse the EDF.

2. 64mm EDF – need to remove/take out intake lip. Since it uses hot glue, it should be easy to remove the EDF later from the bracket using hot water to loose the glue if you would like to reuse the EDF.

Please go to “OWL F-18 Super Hornet 64mm – SUPPORT ver 1.0\EDF BRACKETS” directory to get EDF brackets for 50mm EDF or 64mm EDF motor.

Below are 50mm and 64mm EDF bracket pictures from the CAD  :

Below some QX-Motor 64mm EDF pictures installed into the fuselage  :

*) Pictures above borrows from OWL ViperJet 50/64mm EDF for illustration only.

Descriptions for pictures below :

Left side : using hot glue for 50mm EDF motors.

Right side : using hot glue for 64mm EDF motors.

Special note when gluing 50mm EDF bracket :

Make sure that the 3 cables from EDF about perpendicular with EDF bracket arms as shown by the picture below.

EDF Hatch Support Rods  :

Please insert steel support rods 1.0 – 1.5mm OD into the provided holes to make parts stronger as shown by the pictures below :

*) Left side picture is for the front side of EDF hatch and right side picture is for the back side of EDF hatch.

*) Pictures above are from OWL ViperJet 50/64mm EDF for illustration only.

Elevator Servos Installation :

Please follow step by step below to install the elevator servos into the fuselage. For the brackets, please find them under “OWL F-18 Super Hornet 64mm – SUPPORT ver 1.0\SERVOS\12gr ELEVATOR SERVO BRACKET”.

Note : hot glues is preferred to use instead of CA so that it can be easily replaced whenever necessary (use hot water to remove the servo from its bracket whenever the need to replace with another servo).

Keeping Vase Mode Printing for The Outer Perimeter :

Please cut areas shown on the right side picture for FUSELAGE-5 # B2T2_GR1 printed with LW-PLA filament.

Center of Gravity (CoG) :

How to Launch OWL F-18 Super Hornet 64mm EDF Model :

Recommend to launch the model using catapult launcher. If you wish to launch with our 3D printed catapult launcher, please visit OWLplane Catapult Launcher product page menu under “SHOP & PRODUCT LIST” tab after hovering the mouse over (you can use your own Catapult Launcher so that you just need to print the hook adapter).

Watch the following videos how easy it is to launch the rc model with OWLplane Catapult Launcher and human free errors.

Printing and Preparing OWL F-18 Super Hornet 64mm EDF Launcher Adapter :

If you plan to launch the model with your own catapult launcher, please print the parts shown on the right side from  “OWL F-18 Super Hornet 64mm – SUPPORT ver 1.0\CATAPULT ADAPTER\GCODE & 3MF\PLA” for the puller and need to glue the hook bar “F-18 SUPER HORNET HOOK # GR4” from “1. FUSELAGE\GCODE & 3MF” directory.

Feel free to use your own catapult launcher or you can print OWLplane catapult launcher for free.

Optional : Fiber Tape Protecting The Model During Belly Landing

By using fiber tape attached to the belly skin, it will protect a model during landing from rough surfaces. Not only protecting, you may no need to clean the belly after sometime by replacing it to get back clean.

We have tested it and really happy with the result. The model is still in a good condition after landing it on rough surfaces.

*) Using F16 belly part as illustration only.

Some Note for Slicing STL Files for LW-PLA :

Note : please go directly to 3MF files for PLA filament.

Default Value are :

– Retraction : Set enabled only to make “extra restart length = 0.05mm” (PrusaSlicer), “extra restart amount = 0.05mm” (IdeaMaker) or “retraction extra prime amount = 0.5mm^3” (Cura) to compensate loosing materials due to stringing issues.

– Heatbed: 55 degree C.

– Hotend: 245 degree C (you may want to change it between 240 – 250 degree C).

– Extrusion Multiplier : 0.55% (feel free to update this value).

– Extrusion Width: 0.40mm (feel free to find your preference value, but it will be around that value).

– Extrusion Height: 0.25mm (greater is faster but less stronger bonding).

– Printing Speed: 35mm/sec.

– Retraction Speed : 50mm/sec.

Weight and Time Estimation for LW-PLA Only :

Following tables show the weight of printed parts, number of required filament rolls and time required to print for LW-PLA only. For PLA, please go directly to read from PrusaSlicer output information. But the number may vary from printer to printer due to:

– Stepper Jerk value.

– Stepper Acceleration value.

– Steps per unit (either calibrated or uncalibrated).

– Extruder quality/condition.

– Nozzle quality/condition.

– Filament quality/condition.

– Etc.

Here are the summary table (estimation with 64mm EDF setup) :

Table of Contents

Update History


Recommended Setup

Tools and Materials

Hardware Needed

For Fuselage and Canopy:

For Aileron and Elevator Servos:

*) Illustration only

Setup for Servo Travel/Throw

Suggested setup for medium travel/thrown are depicted below and you may adjust the setup according to your need.

Please pay attention to start and end measurement location.

Assembly Figures

F-18 Super Hornet 64mm Fuselage Assembly

F-18 Super Hornet 64mm Wings Assembly

F-18 Super Hornet 64mm Stabilizer Assembly

F-18 Super Hornet 64mm Canopy Assembly

Watch OWL F-18 Super Hornet - 64mm EDF
Animation and Assembly Video
Please visit the page for having visual learning
