SuperOWL Jet 70mm EDF
~ LW-PLA Digital Balsa and Foam Series ~

Videos and Pictures

SuperOWL 70mm Jet is designed so that it can use either 4s or 6s 70mm type of EDF. It accept removeable intake lip EDF and also fixed intake lip EDF. To get a correct CoG location, it uses either 3300mAh 4s or 2200mAh 6s with estimated weight about 400gr. It should be able to accept more or less than that battery weight as long as ESC and its battery position can make the CoG location is about at suggested location.

We continue releasing the model with a “digital balsa and foam” approach. So far, we are very happy having feedback from some of our customers when slicing the model designed with that approach. The printed parts are much stronger and still keep the weight about the same as digital balsa approach models.

To protect from scratches during landing, you may want to use fiber tape (you can find it in details below in this page).

If you are not familiar with launching an EDF jet, we would suggest you use our OWLplane Catapult Launcher (it is human free error from throwing the model). During maiden, also suggest using that launcher so that you can get familiar first with the model. When you have trimmed aileron and elevator control surfaces already after maiden, you will have no worry since no need anymore setting or trimming the control surfaces right after hand launching the model.

In general, this model must be printed with LW-PLA/ePLA-LW/PolyLight 1.0 filament only (you still may want to experiment printing some parts with PLA * for example printing wings with PLA for having extreme maneuver *). It is not with landing gear model (it is hand launch or catapult launch type of model),

Digital Balsa and Foam Series

Printing Profiles with Gyroid Infill :

As you can see from the pictures below, they illustrate a 3D printed part when using gyroid infill and ribs. You can pick infill percentage to you preferences where the higher you set it will be stronger. To get optimal result, we also still use ribs so that we will achieve parts using optimal gyroid infill percentage. With having gyroid infill, we have tried to use top and bottom layers. The good news is that the AUW is still acceptable for the jet and allow it to use like lego style blocks to assemble.

We run some research and experiment with some number of setting values for infill percentage. Final values will be used in our OWLplane slicer profiles. Feel free to increase or decrease the values including playing with other settings if you feel better than ours (we are happy listening / getting your input/feedback, so keep us posted about your build in our facebook group).

*) Below is from F16 part for illustration.

Like Playing Lego :

As explained above, click the right side youtube video showing how to assembly the fuselage like playing “lego” blocks.

Expected Some Stringing but Easy to Clean :

Since active foaming filaments such as LW-PLA is not affected  by retraction, some stringings are expected. The good news is that they are easy to clean compared to printing with standard PLA/PLA+.

*) below are sample parts from F16 model.

Sandpaper Cleaning the Excessive Materials Surrounding Plug-In Blocks :

Sanding parts would make assembling much easier and also cleaner. Excessive materials can be found on the top surfaces. For example, the circle in the picture need to sand so that there is no need to push the part harder later to fit into the next part.

*) a sample part from F16 model.

Sand The Surfaces To Get Smooth Ones :

Comparing surfaces before and after sending it. LW-PLA material let you smoothing surfaces where it would not be applicable when sanding standard PLA or PLA+.

Specification and Some Details

Spar Requirements :

  • 1 x 8mm OD and with 387mm long fiber carbon tube as front fuselage and wing spar.
  • 1 x 8mm OD and with 387mm long fiber carbon tube as back fuselage and wing spar.
  • 2 x 6mm OD and with 343mm long fiber carbon tube as wing spar.
  • 2 x 6mm OD and with 235mm long for stabilizer spars.

Locking Belt for Attaching Wings to Fuselage :

Aileron/Wing Control Surfaces Rods:

Elevator/Horizontal Stabilizer Control Surfaces Rods:

Electronic Positions :

Feel free to locate the electronics for getting the correct CoG.

70mm EDF Bracket and Installation :

Below pictures show how 70mm EDF installed into the fuselage.

Two sets of EDF brackets can be used. The one with intake lip removed or the one with intake lip intact.

You can find the bracket STL files under “SuperOWL Jet 70mm – SUPPORT ver 1.0\EDF BRACKETS”.

*) For illustration only from 64mm EDF

Below showing 70mm EDF and their brackets. You do not need to glue the fixed intake lip EDF into its bracket but you need to screw left and right side arms before attaching to the fuselage so that the bracket will not easily separated from its bracket.

Left side : using screws to attach to the bracket for EDF with fixed intake lip.

Right side : using hot glue for 70mm EDF with no intake lip (removed intake lip).

EDF Hatch Support Rods  :

Please insert steel support rods about 1.5mm OD into the provided holes to make parts stronger as shown by the pictures below :

Trimming Canopy  :

Center of Gravity (CoG) :

How to Launch SuperOWL 70mm EDF Model :

Two methods are suggested to launch the model. The first one is to use OWLplane Catapult Launcher. Please visit OWLplane Catapult Launcher product page menu under “SHOP & PRODUCT LIST” tab after hovering the mouse over (you can use your own Catapult Launcher so that you just need to print the hook adapter). The second one is by hand launching.

It is recommended to launch the model by utilizing OWLplane Catapult Launcher or your own launcher since it is human free error.

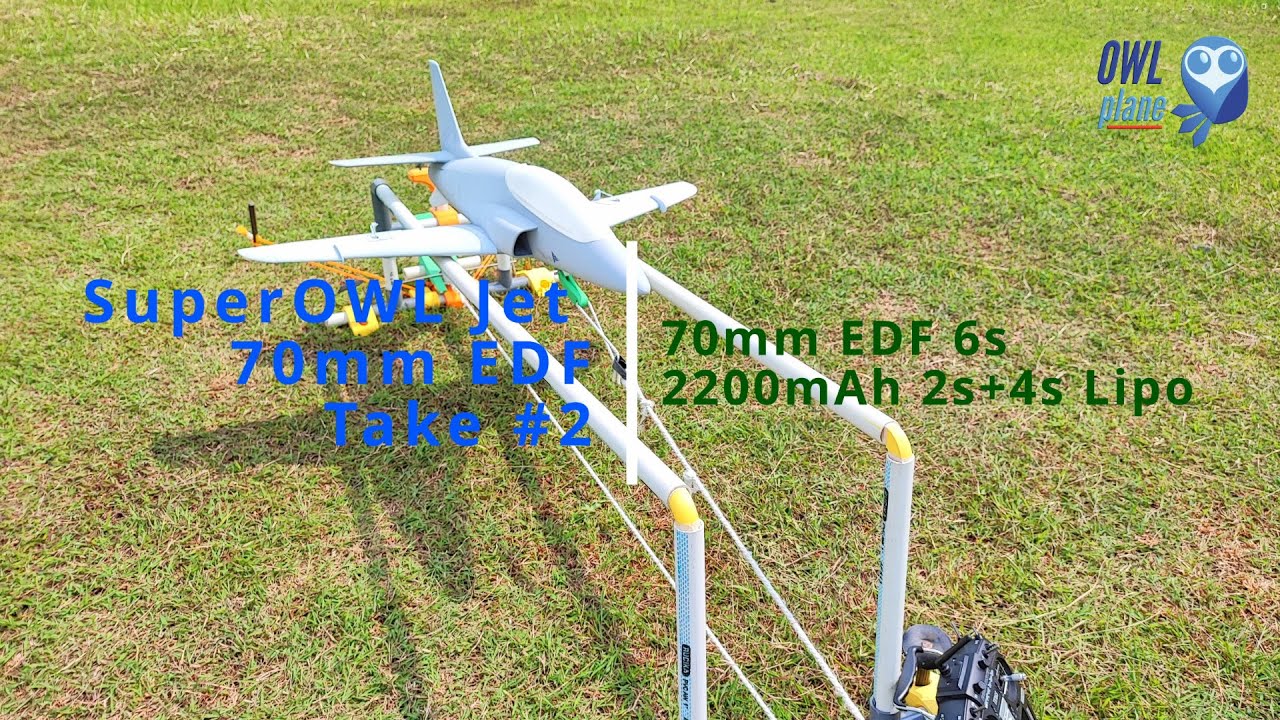

#1 – By Utilizing OWLplane Catapult Launcher.

Watch the following videos how easy it is to launch the rc model with OWLplane Catapult Launcher and human free errors.

#2 – By Throwing.

Follow the following tips to launch :

– Lean your body backward.

– Put your fingers on designated locations (shown in the following section below).

– Start throwing by also moving your body forward.

*) Above pictures are illustration only, using 50mm BAE Hawk T1.

Printing and Preparing SuperOWL 70mm EDF Launcher Adapter :

If you plan to launch the model with your own catapult launcher, please print the parts shown on the right side from  “SuperOWL Jet 70mm – SUPPORT ver 1.0\CATAPULT ADAPTER” for the puller and need to glue the hook bar “SUPEROWL HOOK # GR3” from “SuperOWL Jet 70mm – STL, 3MF and G-code ver 1.0\1. FUSELAGE\STLs” directory to the fuselage.

Finger Resting for Hand Launching :

If you choose to launch by throwing, please put your fingers as shown in the following pictures.

Optional : Fiber Tape Protecting The Model During Belly Landing

By using fiber tape attached to the belly skin, it will protect a model during landing from rough surfaces. Not only protecting, you may no need to clean the belly after sometime by replacing it to get back clean.

We have tested it and really happy with the result. The model is still in a good condition after landing it on rough surfaces.

*) Using F16 belly part as illustration only.

Some Note for Slicing STL Files :

Default Value are :

– Retraction : Set enabled only to make “extra restart length = 0.05mm” (PrusaSlicer), “extra restart amount = 0.05mm” (IdeaMaker) or “retraction extra prime amount = 0.5mm^3” (Cura) to compensate loosing materials due to stringing issues.

– Heatbed: 55 degree C.

– Hotend: 245 degree C (you may want to change it between 240 – 250 degree C).

– Extrusion Multiplier : 0.55% (feel free to update this value).

– Extrusion Width: 0.40mm (feel free to find your preference value, but it will be around that value).

– Extrusion Height: 0.25mm (greater is faster but less stronger bonding).

– Printing Speed: 35mm/sec.

– Retraction Speed : 50mm/sec.

Weight and Time Estimation :

Following tables show the weight of printed parts, number of required filament rolls and time required to print. But the number may vary from printer to printer due to:

– Stepper Jerk value.

– Stepper Acceleration value.

– Steps per unit (either calibrated or uncalibrated).

– Extruder quality/condition.

– Nozzle quality/condition.

– Filament quality/condition.

– Etc.

Here are the summary table :

Klipper Firmware Does Not Accept “#” / Hash Character

Unfortunately the Klipper firmware does not accept the “#” / hash character when naming the file. More and more 3D printers nowadays and upcoming most likely will use the Klipper firmware where when using previous firmware such as Marlin, Prusa, etc. do not prevent it from processing.

Since our naming convention for our g-code files utilize the “#” character and already since we started the OWLplane, we still keep them until our new release models dated after July 2024 (after BD OWLjet 70mm 6s EDF).

No worry, to use our g-code files, just need to remove the “#” character, that is it !

Fore example :

FUSELAGE-1 # P3_H15″ replace the file name with “FUSELAGE-1 P3_H15”

Note : no “#” character is used in the new file name.

How To Extract Our Zip Files

Somehow when the folder path is too long,  files and directories can not be extracted directly to a destination directory. There is a workaround for this, just follow the guide below. What you need to follow is to double click zip file until you find the directory. From there, double right click to invoke a “copy” command. After that, just paste the directory into your destination directory. That is it !

Table of Contents

Update History

None.

Recommended Setup

Battery Protector and/or Weight Balancer Holder for 2200mAh 3s/4s and 3300mAh 4s Battery :

One of challenges in 3D printed plane is where it has a wide range of possible total weight result. To solve this issue at the same time protecting your battery, the following STL files are created for your 2200mAh 3s/4s and 3300mAh 4s. Feel free to download and use the files (G-code files are also provided for Bowden or Direct Drive setup including STEP files).

Tools and Materials

Hardware Needed

For Fuselage and Canopy:

For Aileron and Elevator Servos:

*) Illustration only

Setup for Servo Travel/Throw

Suggested setup for medium travel/thrown are depicted below and you may adjust the setup according to your need.

Please pay attention to start and end measurement location.

Assembly Figures

SuperOWL Jet 70mm Fuselage Assembly

SuperOWL Jet 70mm Wings Assembly

SuperOWL Jet 70mm Stabilizer Assembly

SuperOWL Jet 70mm Canopy Assembly

Watch SuperOWL Jet - 70mm
Animation and Assembly Video
Please visit the page for having visual learning
