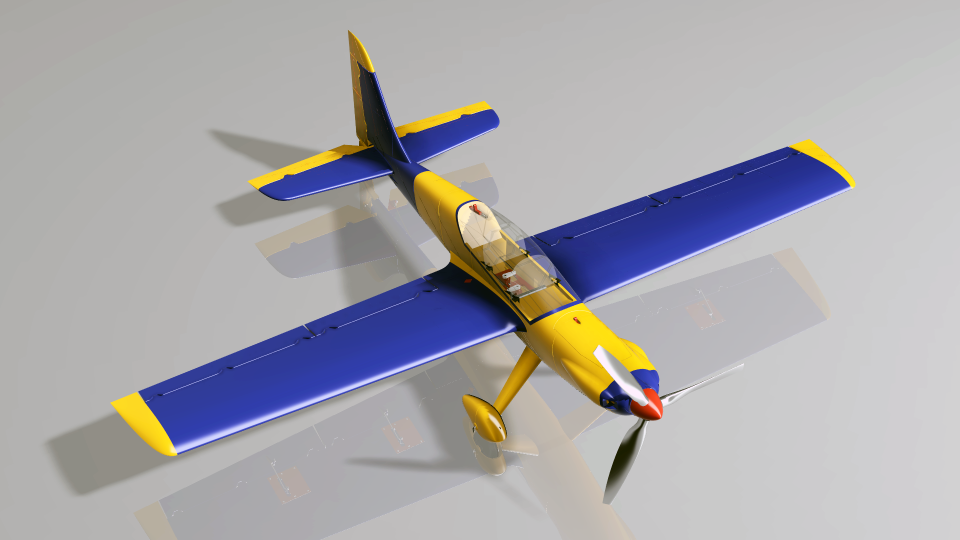

OWLplane 3D Printed Product Planes
Specification
Wing Loading : 83.3-106.5gr/dm^2.
AUW/Flying Weight : 1800gr-2300gr (with 2200mAh 6s - 3300mAh 6s).
Wing Area : 21.6dm^2.
Wing Cube Loading (WCL) : 17.9-22.9.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1040 mm.
Wing Span : 743 mm.
Specification
Wing Loading : 65.6-81.3gr/dm^2.
AUW/Flying Weight : 1050gr-1300gr (with 2200mAh 4s).
Wing Area : 16 dm^2.
Wing Cube Loading (WCL) : 16.4-20.3.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 867 mm.
Wing Span : 619 mm.
Specification
Wing Loading : 56-64gr/dm^2.
AUW/Flying Weight : 1750gr-2000gr (with 2200mAh 6s).
Wing Area : 31.25 dm^2.
Wing Cube Loading (WCL) : 10-11.4.
Flight Performance Category : Racer.
Radio Channels : Throttle and Elevon.
Length : 1,194.7 mm.
Wing Span : 864.4 mm.
Specification
Wing Loading : 55.0-67.5gr/dm^2.
AUW/Flying Weight : 1100gr-1350gr (with 2200mAh 4s).
Wing Area : 20 dm^2.
Wing Cube Loading (WCL) : 12.3-15.1.
Flight Performance Category : Racer.
Radio Channels : Throttle and Elevon.
Length : 955.75 mm.
Wing Span : 691.5 mm.
Specification
Wing Loading : 82.5-120.3gr/dm^2.
AUW/Flying Weight : 1950-2850gr.
Wing Area : 23.7dm^2.
Wing Cube Loading (WCL) : 16.9-24.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Flap (LG Version) and Elevator.
Length : 1,103mm.
Wing Span : 1,177mm.
Specification
Wing Loading : 92.3gr/dm^2.
AUW/Flying Weight : 1200gr (LW-PLA, with battery 2200mAh 4s).
Wing Area : 13dm^2.
Wing Cube Loading (WCL) : 25.5.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 817mm.
Wing Span : 872mm.
Specification
Wing Loading : 65.8-80.8 gr/dm^2.
AUW/Flying Weight : 1750gr-2150gr (with battery 2200mAh 6s).
Wing Area : 26.6 dm^2.
Wing Cube Loading (WCL) : 12.7 to 15.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1,195mm.
Wing Span : 936mm.
Specification
Wing Loading : 67.6-78.4 gr/dm^2.
AUW/Flying Weight : 1250gr-1450gr (with 2200mAh 4s).
Wing Area : 18.5 dm^2.
Wing Cube Loading (WCL) : 15.7 to 18.2.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 996mm.
Wing Span : 780mm.
Specification
Wing Loading : 91.5 gr/dm^2.
AUW/Flying Weight : 2900 gr.
Wing Area : 31.68 dm^2.
Wing Cube Loading (WCL) : 16.2.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Elevator and Rudder.
Length : 1.215 mm.
Wing Span : 1.548mm.
Specification
Wing Loading : 65.9 - 79.5 gr/dm^2.
AUW/Flying Weight : 1450 - 1750 gr.
Wing Area : 22 dm^2.
Wing Cube Loading (WCL) : 14 - 17.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Elevator and Rudder.
Length : 1.013mm.
Wing Span : 1.290mm.
Specification
Wing Loading : 50 - 78.6 gr/dm^2.
AUW/Flying Weight : 1.400 - 2.200 gr (with battery 2200mAh 4s - 2200mAh 6s).
Wing Area : 28 dm^2.
Wing Cube Loading (WCL) : 9.4 - 14.8
Flight Performance Category : Sport Aerobatic.
Radio Channels : Throttle, Aileron and Elevator (Elevon).
Length : 894mm.
Wing Span : 986/1.172mm
Specification
Wing Loading : 74.3-91.4 gr/dm^2,
AUW/Flying Weight : 2600 gr (w/ 3300mAh and printed w/ 0.32mm extrusion width),
Wing Area : 35 dm^2,
Wing Cube Loading (WCL) : 12.5-15.4,
Flight Performance Category : Scale,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1270 mm,
Wing Span : 1698 mm.
Specification
Wing Loading : 84.6-100 gr/dm^2,
AUW/Flying Weight : 2200 gr (w/ 3300mAh and printed w/ 0.32mm extrusion width),
Wing Area : 26 dm^2,
Wing Cube Loading (WCL) : 16.6-19.6,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Radio Channels : Throttle, Aileron, Flap, Elevator, Rudder and Main Landing Gears,
Length : 1100 mm,
Wing Span : 1289 mm.
Specification
Wing Loading : 60gr/dm^2,
AUW/Flying Weight : 1500gr (with battery 2200mAh 3s and printed with 0.32mm extrusion width),
Wing Area : 25dm^2,
Wing Cube Loading (WCL) : 12,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Elevator and Rudder,
Length : 1061mm,
Wing Span : 1498mm.
Specification
Wing Loading : 75.8-88.7gr/dm^2,
AUW/Flying Weight : 2350-2750gr,
Wing Area : 31dm^2 (with asymmetric airfoil/not for 3D flying),
Wing Cube Loading (WCL) : 13.6-15.9,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Elevator and Rudder,
Length : 1144mm,
Wing Span : 1408mm.
Specification
Wing Loading : 46.8 - 49.4 gr/dm^2,
AUW/Flying Weight : 1.800 - 1.900 gr (with battery 2200mah 4s),
Wing Area : 38.5 dm^2,
Wing Cube Loading (WCL) : 7.5 - 7.9,
Flight Performance Category : Trainer Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator, Rudder and Motor,
Length : 1.222mm,
Wing Span : 2.388mm
Specification
Wing Loading : 58.0 - 65.2 gr/dm^2,
AUW/Flying Weight : 2.000 - 2.250 gr (with battery 2200/2700mah 4s),
Wing Area : 34.5 dm^2,
Wing Cube Loading (WCL) : 9.8 - 11.1,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1.165mm,
Wing Span : 1.510mm
Specification
Wing Loading : 66.7gr/dm^2,
AUW/Flying Weight : 2300gr (with battery 3300mah 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 11.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
Specification
Wing Loading : 72.5gr/dm^2,
AUW/Flying Weight : around 2500gr (with battery 4000mAh 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 12.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
Specification
Wing Loading : 66.7gr/dm^2,
AUW/Flying Weight : 2300gr (with battery 3300mAh 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 11.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
