3D Printed
RC Plane Products
Specification
Wing Loading : 82.5-120.3gr/dm^2.
AUW/Flying Weight : 1950-2850gr.
Wing Area : 23.7dm^2.
Wing Cube Loading (WCL) : 16.9-24.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Flap (LG Version) and Elevator.
Length : 1,103mm.
Wing Span : 1,177mm.
Specification
Wing Loading : 92.3gr/dm^2.
AUW/Flying Weight : 1200gr (LW-PLA, with battery 2200mAh 4s).
Wing Area : 13dm^2.
Wing Cube Loading (WCL) : 25.5.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 817mm.
Wing Span : 872mm.
Specification
Wing Loading : 97.5-112.5gr/dm^2.
AUW/Flying Weight : 1950-2250gr (with battery 2800mAh-3300mAh 6s).
Wing Area : 20 dm^2.
Wing Cube Loading (WCL) : 21.8-25.1
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Flap, Rudder, Nose Steering LG and Elevator.
Length : 1,093 mm.
Wing Span : 994 mm.
Specification
Wing Loading : 65.8-80.8 gr/dm^2.
AUW/Flying Weight : 1750gr-2150gr (with battery 2200mAh 6s).
Wing Area : 26.6 dm^2.
Wing Cube Loading (WCL) : 12.7 to 15.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1,195mm.
Wing Span : 936mm.
Specification
Wing Loading : 67.6-78.4 gr/dm^2.
AUW/Flying Weight : 1250gr-1450gr (with 2200mAh 4s).
Wing Area : 18.5 dm^2.
Wing Cube Loading (WCL) : 15.7 to 18.2.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 996mm.
Wing Span : 780mm.
Specification
Wing Loading : 68.4-79.1gr/dm^2.
AUW/Flying Weight : 1,650-1,850gr (with battery 3300mAh 4s to 2200mAh 6s).
Wing Area : 23.4dm^2.
Wing Cube Loading (WCL) : 14.1-16.3
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1,056mm.
Wing Span : 1,240mm.
Specification
Wing Loading : 66.7-76.7 gr/dm^2.
AUW/Flying Weight : 1,000gr-1,150gr (with battery 1500mAh 4s to 2200mAh 4s).
Wing Area : 15 dm^2.
Wing Cube Loading (WCL) : 17.2 to 19.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 845mm.
Wing Span : 992mm.
Specification
Wing Loading : 88 gr/dm^2.
AUW/Flying Weight : 1650gr (with battery 2200mAh 6s- 400gr).
Wing Area : 18.75 dm^2.
Wing Cube Loading (WCL) : 20.3.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1000mm.
Wing Span : 1091mm.
Specification
Wing Loading : 88 gr/dm^2.
AUW/Flying Weight : 1650gr (with battery 2200mAh 6s- 400gr).
Wing Area : 18.75 dm^2.
Wing Cube Loading (WCL) : 20.3.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1043mm.
Wing Span : 970mm.
Specification
Wing Loading : 70-95.8 gr/dm^2.
AUW/Flying Weight : 850gr-1150gr (with battery 1500mAh 4s to 2200mAh 4s).
Wing Area : 12 dm^2.
Wing Cube Loading (WCL) : 20.4 to 27.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 800mm.
Wing Span : 873mm.
Specification
Wing Loading : 70-95.8 gr/dm^2.
AUW/Flying Weight : 850gr-1150gr (with battery 1500mAh 4s to 2200mAh 4s).
Wing Area : 12 dm^2.
Wing Cube Loading (WCL) : 20.4 to 27.7.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 835mm.
Wing Span : 776mm.
Specification
Wing Loading : 91.5 gr/dm^2.
AUW/Flying Weight : 2900 gr.
Wing Area : 31.68 dm^2.
Wing Cube Loading (WCL) : 16.2.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Elevator and Rudder.
Length : 1.215 mm.
Wing Span : 1.548mm.
Specification
Wing Loading : 65.9 - 79.5 gr/dm^2.
AUW/Flying Weight : 1450 - 1750 gr.
Wing Area : 22 dm^2.
Wing Cube Loading (WCL) : 14 - 17.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron, Elevator and Rudder.
Length : 1.013mm.
Wing Span : 1.290mm.
Specification
Wing Loading : 50 - 78.6 gr/dm^2.
AUW/Flying Weight : 1.400 - 2.200 gr (with battery 2200mAh 4s - 2200mAh 6s).
Wing Area : 28 dm^2.
Wing Cube Loading (WCL) : 9.4 - 14.8
Flight Performance Category : Sport Aerobatic.
Radio Channels : Throttle, Aileron and Elevator (Elevon).
Length : 894mm.
Wing Span : 986/1.172mm
Specification
Wing Loading : 81gr/dm^2.
AUW/Flying Weight : 1750gr.
Wing Area : 21.6 dm^2.
Wing Cube Loading (WCL) : 17.41.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 1,099.2mm.
Wing Span : 843.6mm.
Specification
Wing Loading : 70-80 gr/dm^2.
AUW/Flying Weight : 1050gr-1200gr.
Wing Area : 15 dm^2.
Wing Cube Loading (WCL) : 18.05 to 20.63.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 916mm.
Wing Span : 703mm.
Specification

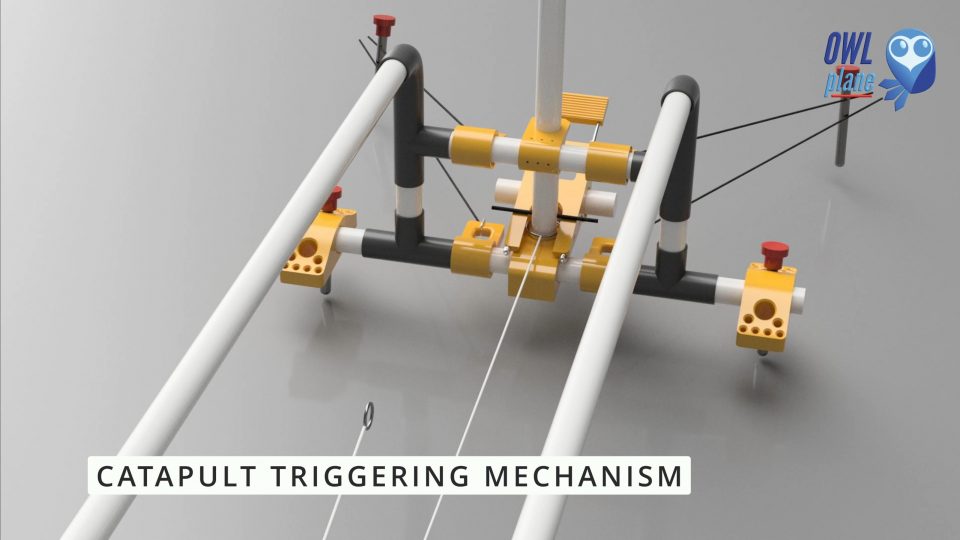

Launching OWLplane LW-PLA jet series with 3D printed catapult mechanism. Tested up to 25kg of force and possible to use above that. Designed for LW-PLA jet series but not limited to only for our models. It could be used with any models up to 2kg or more depending on the setup.
GRAB IT !
Specification
Wing Loading : 72.7gr/dm^2.
AUW/Flying Weight : 800gr (with battery 1500mAh 4s).
Wing Area :11dm^2.
Wing Cube Loading (WCL) : 21.8.
Flight Performance Category : Racer.
Radio Channels : Throttle, Aileron and Elevator.
Length : 810mm.
Wing Span : 736mm.
Specification
Wing Loading : 47.1-51 gr/dm^2,
AUW/Flying Weight : 1200 - 1300 gr w/ and w/o Landing Gear respectively,
Wing Area : 25.5 dm^2,
Wing Cube Loading (WCL) : 9.3-10.1,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Elevator and Rudder,
Length : 1233 mm,
Wing Span : 852 mm.
Specification
Wing Loading : 74.3-91.4 gr/dm^2,
AUW/Flying Weight : 2600 gr (w/ 3300mAh and printed w/ 0.32mm extrusion width),
Wing Area : 35 dm^2,
Wing Cube Loading (WCL) : 12.5-15.4,
Flight Performance Category : Scale,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1270 mm,
Wing Span : 1698 mm.
Specification
Wing Loading : 84.6-100 gr/dm^2,
AUW/Flying Weight : 2200 gr (w/ 3300mAh and printed w/ 0.32mm extrusion width),
Wing Area : 26 dm^2,
Wing Cube Loading (WCL) : 16.6-19.6,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Radio Channels : Throttle, Aileron, Flap, Elevator, Rudder and Main Landing Gears,
Length : 1100 mm,
Wing Span : 1289 mm.
Specification
Wing Loading : 69.4gr/dm^2,
AUW/Flying Weight : 1250gr (with battery 2200mAh 4s and 64mm EDF),
Wing Area : 18dm^2,
Wing Cube Loading (WCL) : 16.4,
Flight Performance Category : Racer,
Radio Channels : Throttle, Aileron and Elevator,
Length : 972.5mm,
Wing Span : 857.5mm - 1,005mm.
Specification
Wing Loading : 65.2gr/dm^2,
AUW/Flying Weight : 750gr (with battery 1800mAh 4s),
Wing Area : 11.5dm^2,
Wing Cube Loading (WCL) : 19.3,
Flight Performance Category : Racer,
Radio Channels : Throttle, Aileron and Elevator,
Length : 778mm,
Wing Span : 762mm.
Specification
Wing Loading : 60gr/dm^2,
AUW/Flying Weight : 1500gr (with battery 2200mAh 3s and printed with 0.32mm extrusion width),
Wing Area : 25dm^2,
Wing Cube Loading (WCL) : 12,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Elevator and Rudder,
Length : 1061mm,
Wing Span : 1498mm.
Specification
Wing Loading : 75.8-88.7gr/dm^2,
AUW/Flying Weight : 2350-2750gr,
Wing Area : 31dm^2 (with asymmetric airfoil/not for 3D flying),
Wing Cube Loading (WCL) : 13.6-15.9,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Elevator and Rudder,
Length : 1144mm,
Wing Span : 1408mm.
Specification
Wing Loading : 46.8 - 49.4 gr/dm^2,
AUW/Flying Weight : 1.800 - 1.900 gr (with battery 2200mah 4s),
Wing Area : 38.5 dm^2,
Wing Cube Loading (WCL) : 7.5 - 7.9,
Flight Performance Category : Trainer Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator, Rudder and Motor,
Length : 1.222mm,
Wing Span : 2.388mm
Specification
Wing Loading : 58.0 - 65.2 gr/dm^2,
AUW/Flying Weight : 2.000 - 2.250 gr (with battery 2200/2700mah 4s),
Wing Area : 34.5 dm^2,
Wing Cube Loading (WCL) : 9.8 - 11.1,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1.165mm,
Wing Span : 1.510mm
Specification
Wing Loading : 66.7gr/dm^2,
AUW/Flying Weight : 2300gr (with battery 3300mah 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 11.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
Specification
Wing Loading : 72.5gr/dm^2,
AUW/Flying Weight : around 2500gr (with battery 4000mAh 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 12.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
Specification
Wing Loading : 66.7gr/dm^2,
AUW/Flying Weight : 2300gr (with battery 3300mAh 4s),
Wing Area : 34.5dm^2,
Wing Cube Loading (WCL) : 11.3,
Flight Performance Category : Sport Aerobatic,
Radio Channels : Throttle, Aileron, Flap, Elevator and Rudder,
Length : 1165mm,
Wing Span : 1510mm.
